Weber Draw-Bar Connector With Lock – Round

The Weber coupling for round towing bars fits on nearly all trailers on the market. With this coupling it is possible to retrofit your trailer with the comfortable and safe bayonet coupling system. Just plug the coupling of the towing bar into the hitch and rotate a plunger block. Result is a firm and precise joint. A practical feature for daily use is the possibility to lock the Weber hitch. This protects your coupled trailer against theft. The coupling is compatible with Weber hitches E and B.

Note: The coupling of the towing bar fits all trailers with a round towing bar.

Technical data:
For the use with non-braked or braked bike trailers for cargo- or child transport. Not approved for motorized vehicles!

aproveable total weight of the trailer: up to 80 kg.
aproveable static towbar load: up to 6,5 kg.

Attention!:
For the assembly you need 2 fork wrenches and/or ring keys with the key width 10 mm. In some cases also a drill, drill with diameter 6 mm and 3.2 mm and a hacksaw or pipe cutter!

For inexperienced people there may be a risk of injury when mounting! Assembly by a specialist is recommended.

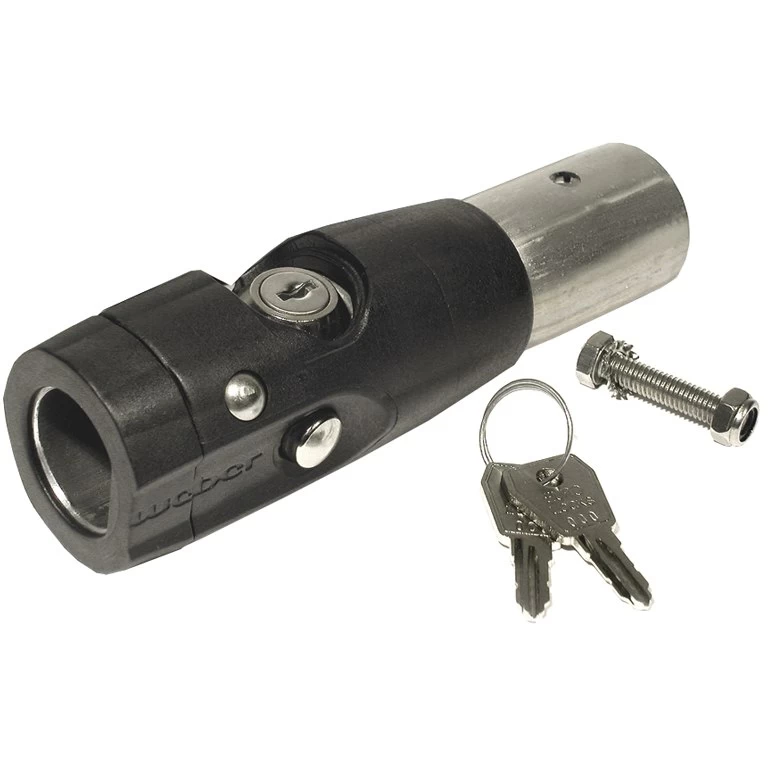

Included in delivery: coupling, mounting material, 2 keys
