Stan’s NoTubes Arch MK4 MTB Rim 26″ | 28mm – 28 Holes

The Stan’s NoTubes Arch MK4 MTB rim was made of high-strength aluminum and thus convinces with high stability at low weight. The asymmetrical design improves the spoke angle and provides a more robust overall construction of the rim. The shape also improves the tightness and thus ensures maximum safety in tubeless operation, especially in hard corners.

All this makes it the perfect all-rounder in fast Cross Country races to hard Enduro use.



Technical details of the Stan’s NoTubes Arch MK4 MTB rim

• range of use: MTB, Cross Country, Enduro
• material: aluminum (6069)
• ETRTO: 28-559
• ERD: 536
• recommended tire width: 2.2″ – 2.5″
• diameter: 26″

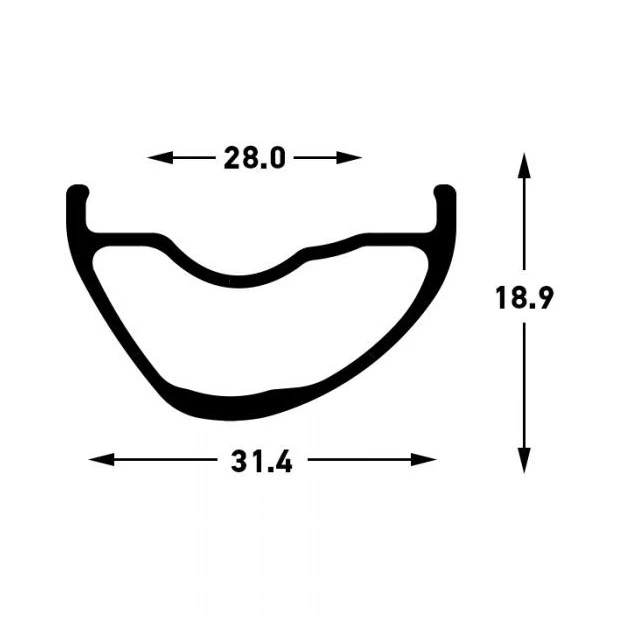

• inner width: 28 mm
• outer width: 31.4 mm
• rim height: 18.9 mm
• only suitable for disc brakes
• weight: approx. 431 g (manufacturer’s specification)

BST Asymetric

The proven and patented Bead Socket Technology guarantees high tightness in tubeless operation. In addition, the asymmetric rim shape with offset spoke extinguishers ensures greater wheel stability and also saves weight.

WideRight

This rim profile allows the tire to take its ideal shape and forms the basis for great handling, fast rolling and high responsiveness.
