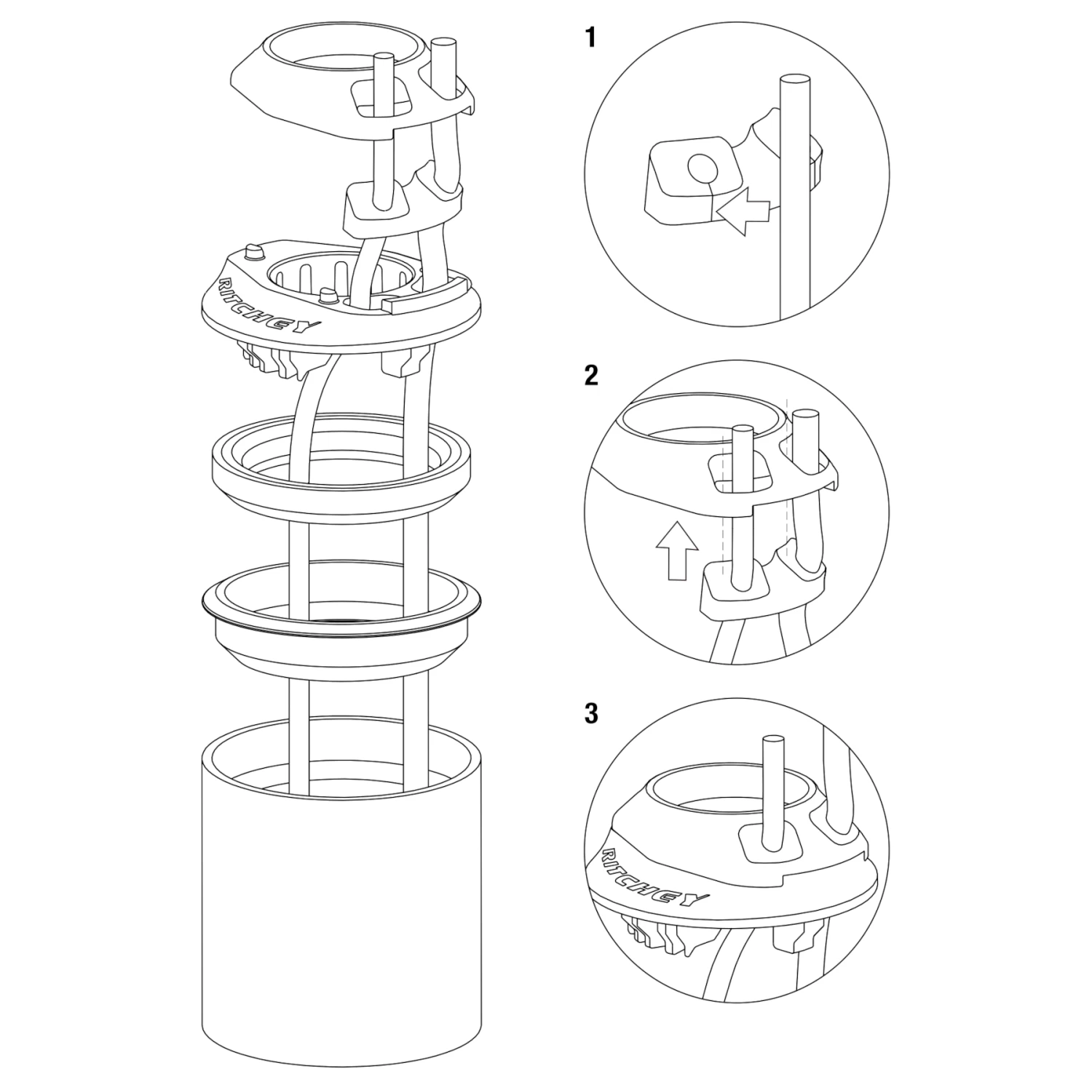

The semi-integrated Ritchey Logic-E headset upper part allows the internal frame routing of electric wires and cables or cable housings without the need for a special stem. The cables are simply inserted through channels on the top of the headset and routed through the space between the steerer tube and head tube before entering the frame.

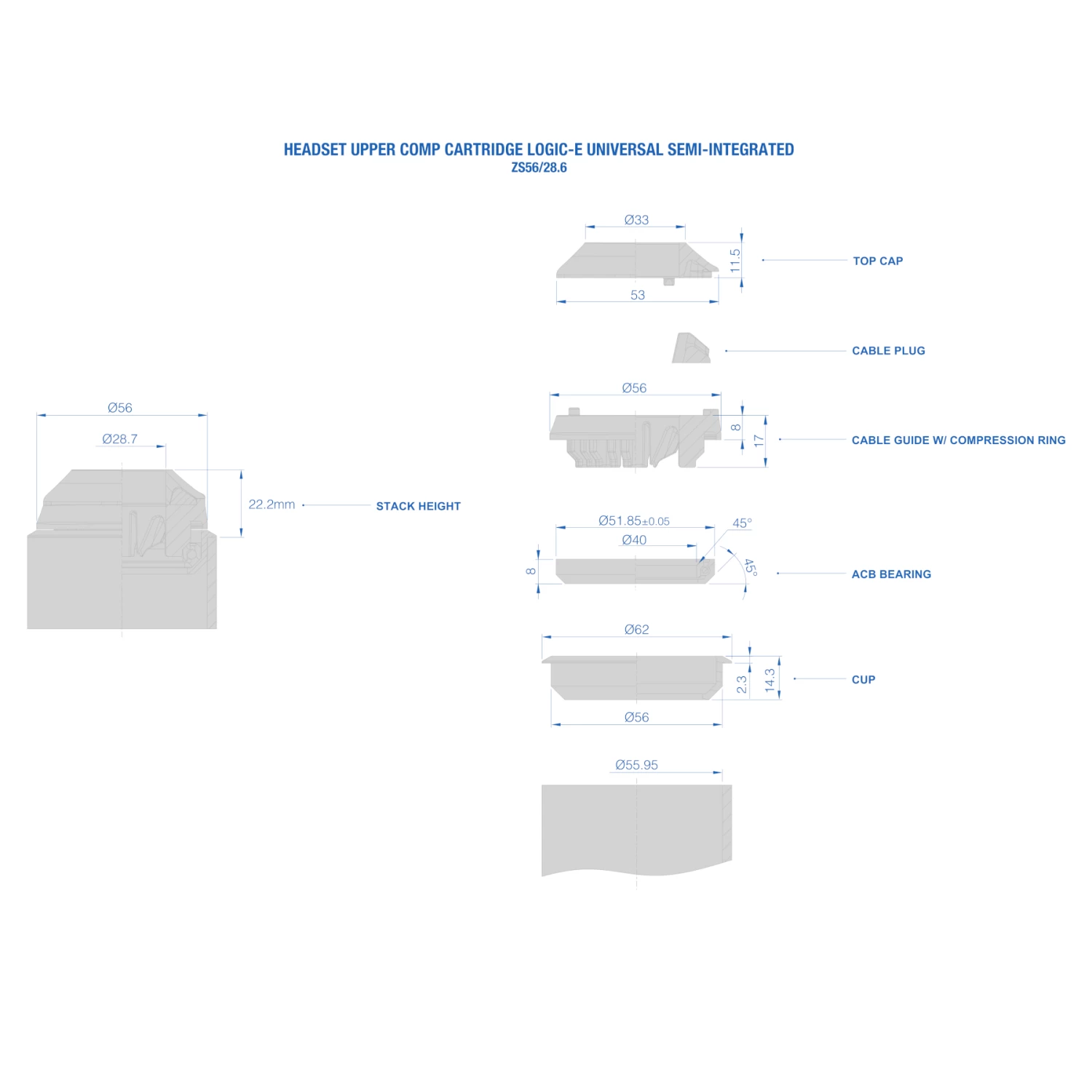

Technical details of the Ritchey Logic-E headset
- level: Comp
- type: Ahead (threadless), Zero Stack (ZS, semi-integrated)
- material: nylon, glass fiber reinforced plastic
- only suitable for 1.5″ head tubes
- outer diameter steerer tube: 28.6 mm (1 1/8″)
- outer diameter cup: 62 mm
- inner diameter cup: 56 mm
- stack height: 22.2 mm
- bearings: 51.80 / 40 mm | 45° / 45° | cartridge (ACB), sealed
- weight: approx. 74 g (manufacturer’s specification)

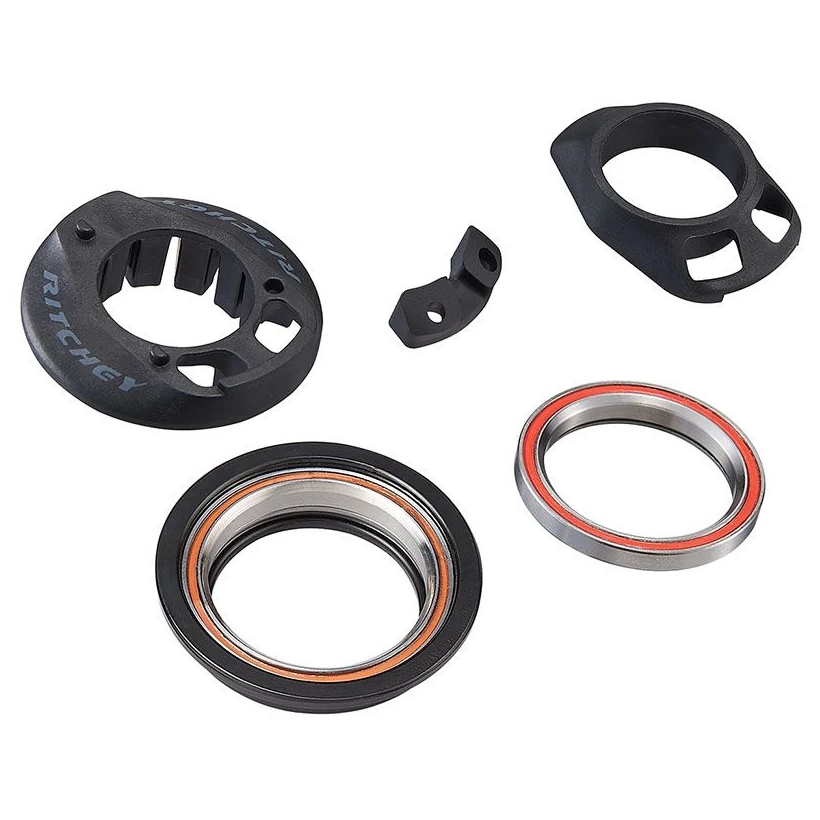

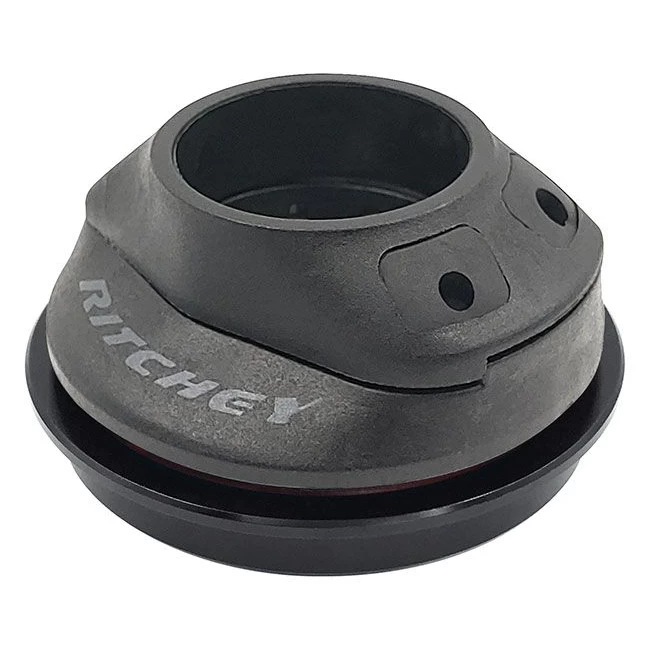

headset upper part (without Ahead cap)
| Product Name | Ritchey Comp Cartridge Logic-E Headset Upper Part – Semi-Integrated – ZS56/28.6 |
|---|---|
| Manufacturer | Ritchey |
| Item Code | RIT559717 |
| activity | Cycling |
| material | Composite, Polymer |
| Steerer tube Ø | 1 1/8" straight ahead, 1 1/8"-1 1/4" tapered, 1 1/8"-1 1/2" tapered, 1 1/8"-1 3/8" tapered |
| S.H.I.S. | semi-integrated (ZS) |
| S.H.I.S. top | ZS56 / 28.6 |
| headset version | Upper part |
| headset stack height | 22.2mm |
| Model year | 2023 |
| Collection | Full year |
| Color | Black |
| weight | 74g |
| manufacturer item code | 33030817011 |
| Weight Source | Manufacturer |
