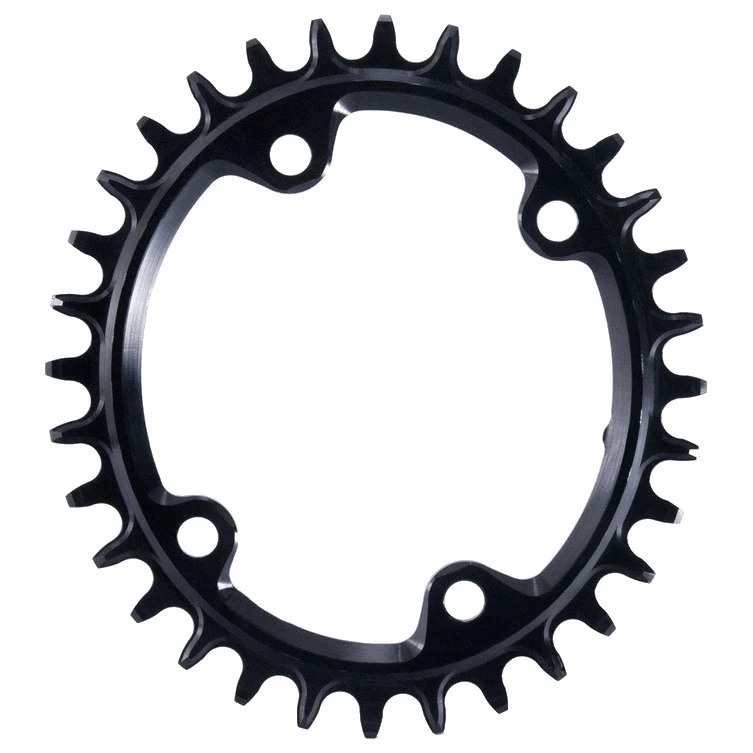

Garbaruk Melon MTB Chainring – 96 Mm / Oval / Narrow-Wide – For Shimano Deore XT / SLX / Deore – Black

Enhance the performance of your bike with an oval narrow/wide chainring by Garbaruk. The aluminium chainring is compatible with 1-/2-speed

This chainring also features the which means that each number of teeth have got its own individual chainline. Another special feature of the chainrings are the raised teeth, which prevent the chains from jumping off.

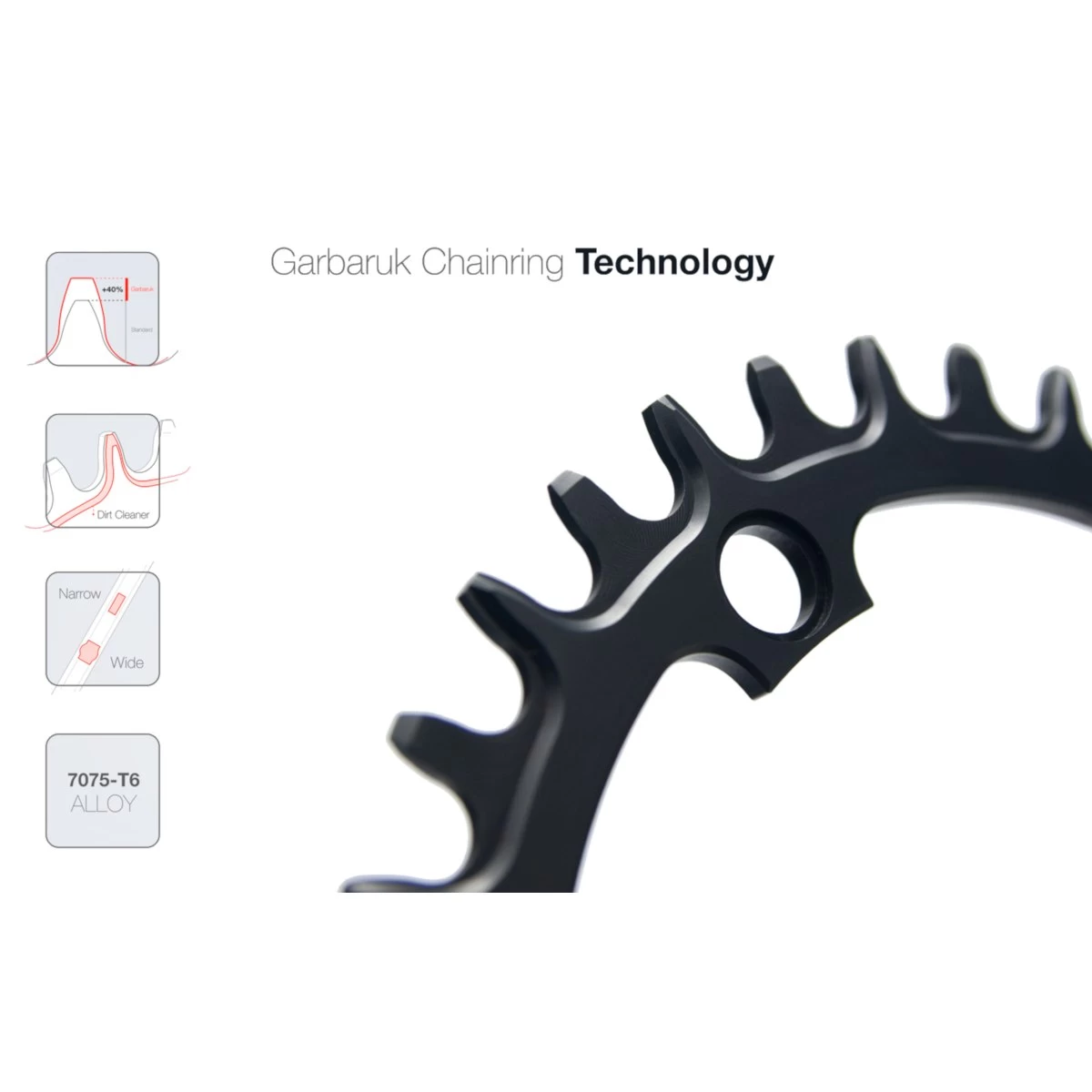

Features of the Garbaruk Melon Oval Narrow-Wide Shimano 96mm asymmetrical Chainring:

• 12% ovality
• 108° timing after TDC (top dead center)
• Garbaruk´s “Variable ChainLine Technology”
• Variable teeth thickness prevents chain dropping
• Special tooth shape guarantees a tighter contact with chain and softer pedaling (in comparison with regular chainrings)
• Chamfered edges and wide mud gap keeps the ring from getting muddy
• Increased tooth height improves chain retention while the bike is shivering and jolting
• Overall bicycle weight reduction in the range of 150-400 grams (with no front derailleur and chainguide)
• Manufactured using highly durable aluminum alloy
• compatible with 9 up to 11-speed derailleur systems



Chainlines

• Chainline: 49mm at 30 teeth (52mm boost)
• Chainline: 49,8mm at 32 teeth (52,8mm boost)
• Chainline: 50,9mm at 34 teeth (53,9mm boost)
• Chainline: 52,2mm at 36 teeth (55,2mm boost)
• Chainline: 53,2mm at 38 teeth (56,2mm boost)



Oval chainrings’ advantages

• Even at-the-wheel distribution of pedaling torque
• Improved responsiveness and pedaling smoothness, narrower dead spots and increased span of your gluteus and hamstrings
• Easier uphill riding, especially on soft and slippery terrains
• Increased pedaling efficiency

Further details of the chainring

Material: 7075-T651 Aluminium Alloy
Weight supplement: 30 teeth,
approx. 49 grams (32 teeth),
approx. 58 grams (34 teeth),
approx. 67 grams (36 teeth),
approx. 79 grams (38 teeth),
manufacturer information
